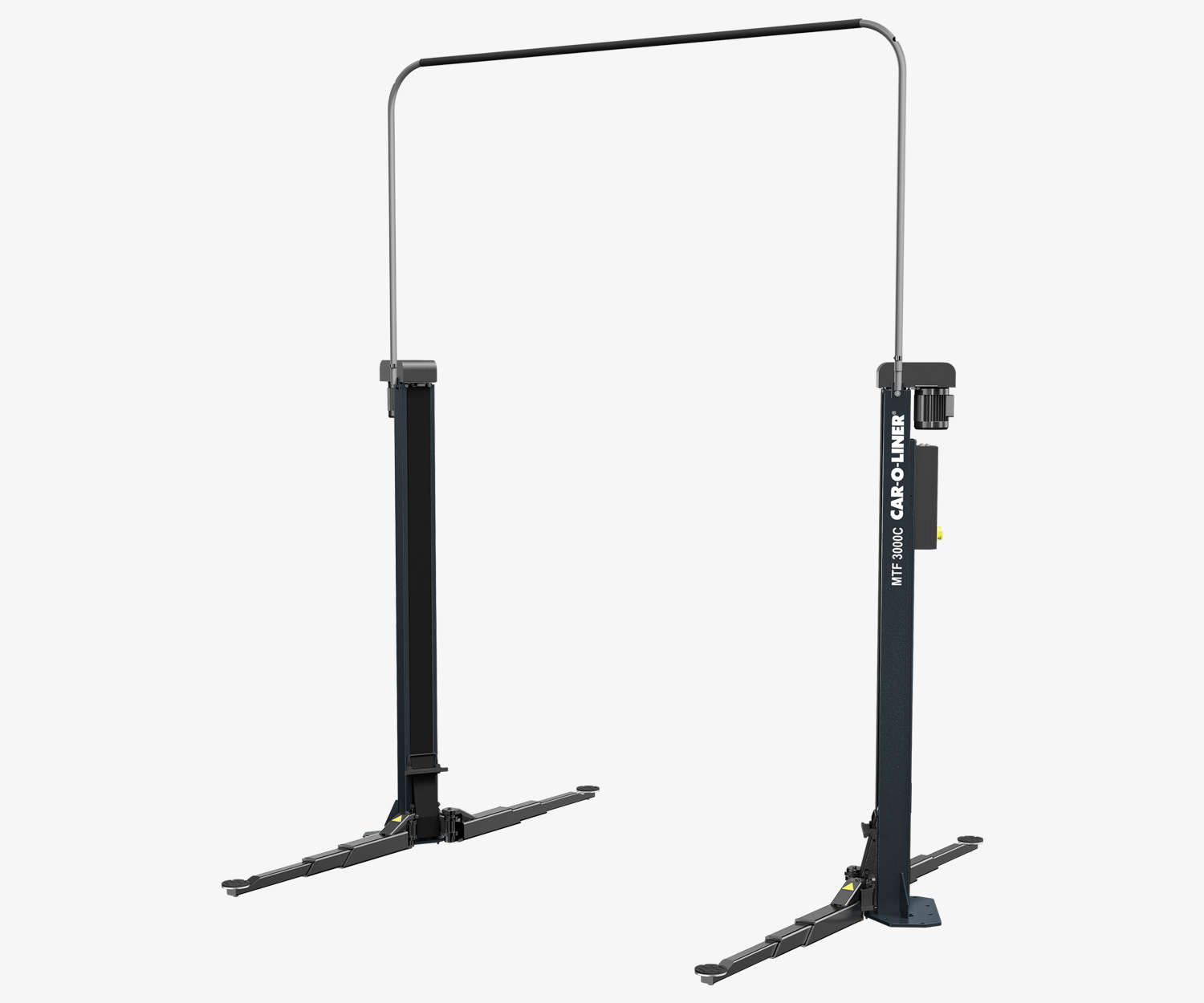

MTF 3000C

Next-Generation Series Electromechanical Lift

Load Distribution

3:2 and 2:3

Short Arm Extension [mm]

491–880

Long Arm Extension [mm]

830–1340

3000kg Capacity

Engineered for workshops where accuracy and reliability are non-negotiable, the MTF 3000C brings electro-mechanical lifting to a new standard of control and durability. With a lifting capacity of 3,000 kg, this next-generation two-post lift from Car-O-Liner is designed for modern service bays, providing the strength and stability required to safely lift everything from compact passenger cars to light commercial vehicles.

The MTF 3000C features hot-rolled steel profile columns positioned at a 30° angle, improving access and door opening clearance around the vehicle. The compact, robust roll-formed column design incorporates a rubber protective band, helping shield the columns from sparks generated during welding or repair operations while the vehicle is raised. Lifting arms connect to the carriage through a heavy-duty reinforced pin housing, enabling smooth bidirectional arm movement and precise positioning at vehicle pick-up points.

Features & Benefits

Overhead Cable Bridge

An integrated overhead cable bridge routes the power supply cable, motor electronic synchronisation cable and thermo switch cable in a clean, organised manner. This design helps eliminate trip hazards while maintaining a safer, more orderly workspace. The adjustable height allows easy adaptation to varying workshop layouts and vehicle heights.

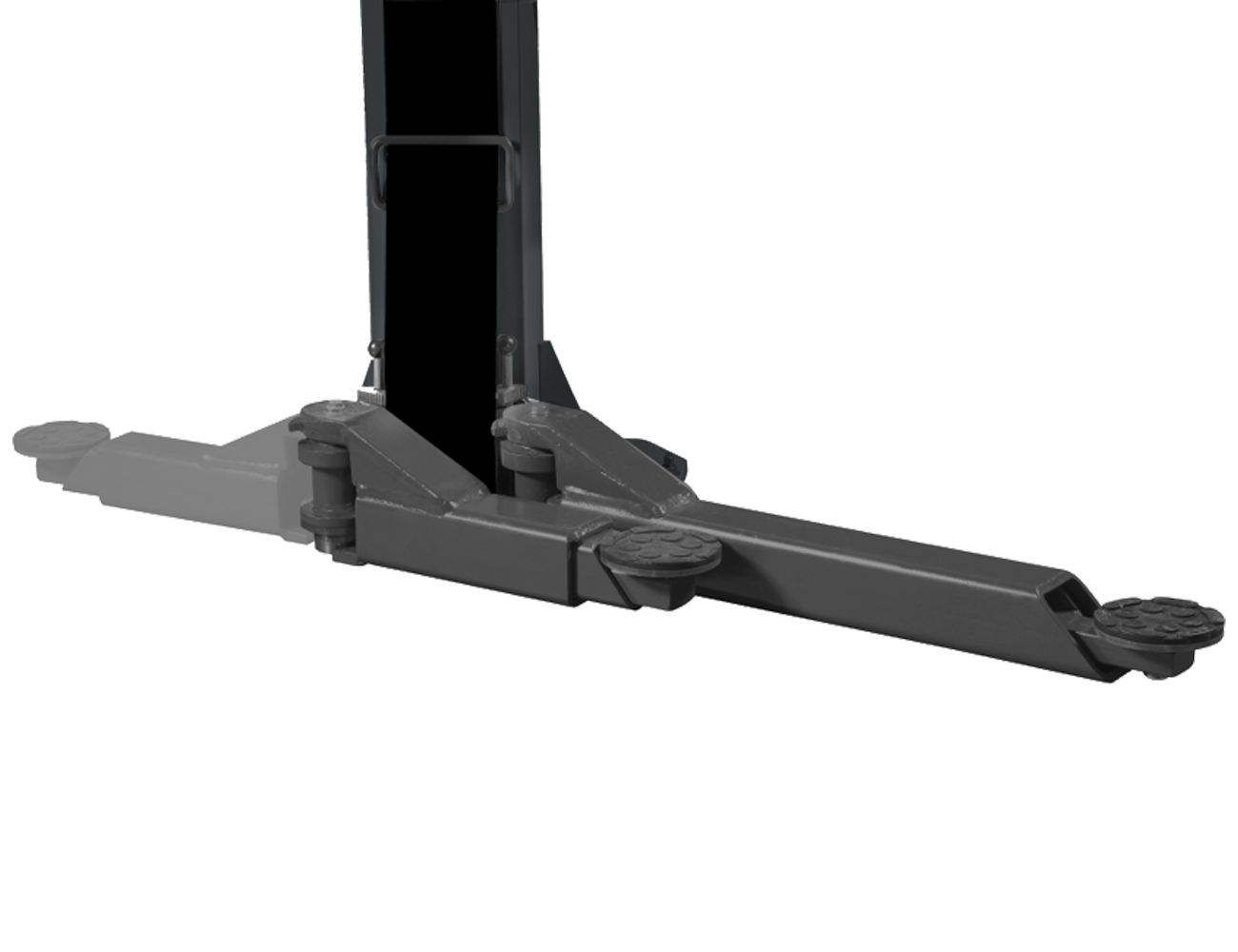

2 & 3-Stage Arms

The lift is equipped with two short 3-stage arms and two long 2-stage arms, offering flexible lifting configurations for a wide range of vehicle sizes and wheelbases. This arm combination supports accurate positioning and efficient workflow across multiple service tasks.

Hot-rolled steel profile columns

The compact, robust roll-formed column design incorporates a rubber protective band, helping shield the columns from sparks generated during welding or repair operations while the vehicle is raised.

Brochure

Find A Distributor

Download Image

Durable Carriage - The MTF 3000C carriage is guided by six maintenance-free rollers inside each column. Unlike plastic sliding blocks, these rollers are designed for long-term use without wear, ensuring consistent lifting performance and reduced maintenance requirements over time.
Load/Safety Nut - A bronze alloy load nut, paired with a cast alloy safety nut, delivers long service life and excellent wear resistance. This design provides a significant durability advantage over nylon alternatives, contributing to reliable operation under demanding workshop conditions.
