MTF 3500C

Two-Post Automotive Lift

Load Distribution

3:2 and 2:3

Short Arm Extension [mm]

670 – 1314

Long Arm Extension [mm]

670 – 1314

3500 kg Capacity

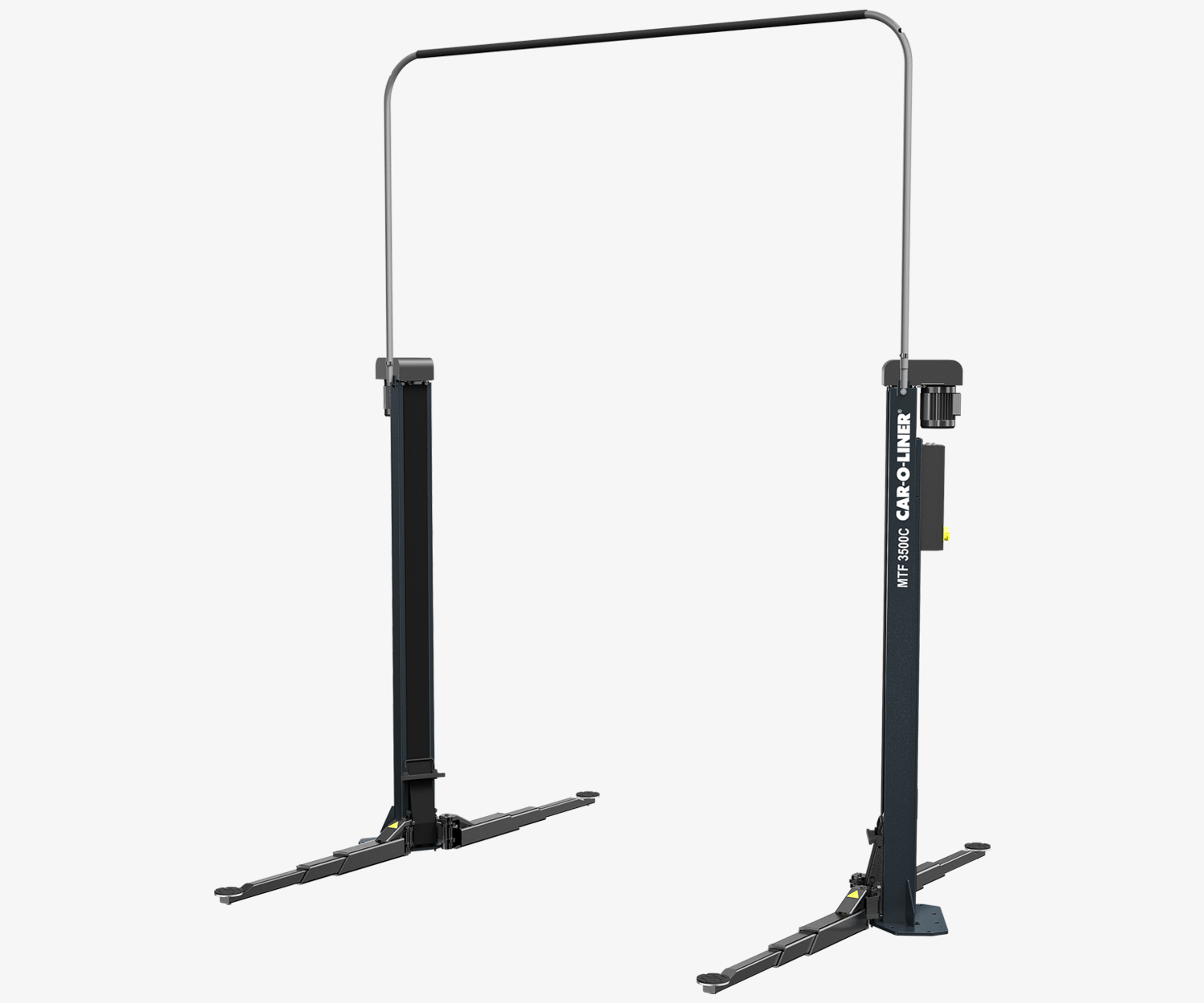

Designed for precision-driven workshops, the MTF 3500C sets a new benchmark in electro-mechanical lifting through dependable performance and controlled operation. With a 3500kg lifting capacity, this advanced lifting solution from Car-O-Liner® is engineered for modern service bays, delivering the strength and versatility required to safely handle everything from compact SMART vehicles to long wheelbase transporters and electric vehicles (EVs).

The MTF 3500C features hot-rolled steel profile columns positioned at a 30° angle, improving access and door opening clearance around the vehicle. The compact, robust roll-formed column design incorporates a rubber protective band, helping protect the columns from sparks generated during welding or repair operations while the vehicle is raised. Lifting arms are connected to the carriage via a heavy-duty reinforced pin housing, enabling smooth bidirectional arm movement and precise positioning.

Features & Benefits

Overhead Cable Bridge

An integrated overhead cable bridge routes the power supply cable, motor electronic synchronisation cable and thermo switch cable in a clean, organised manner. This design helps eliminate trip hazards while maintaining a safer, more orderly workspace. The adjustable height allows easy adaptation to varying workshop layouts and vehicle heights.

3-Stage Arms

Equipped with four extended 3-stage lifting arms, the MTF 3500C provides an adjustable lifting range from 670 to 1314mm, allowing secure and accurate lifting across a wide variety of vehicle sizes and configurations.

Hot-rolled steel profile columns

The compact, robust roll-formed column design incorporates a rubber protective band, helping shield the columns from sparks generated during welding or repair operations while the vehicle is raised.

Brochure

Find A Distributor

Download Image

Durable Carriage - The MTF 3500C carriage is guided by six maintenance-free rollers inside each column. Unlike plastic sliding blocks, these rollers are designed for long-term use without wear, ensuring consistent lifting performance and reduced maintenance requirements over time.
Load/Safety Nut - A bronze alloy load nut, paired with a cast alloy safety nut, delivers long service life and excellent wear resistance. This design provides a significant durability advantage over nylon alternatives, contributing to reliable operation under demanding workshop conditions.
